Product Manual
| Model | EVC-P238-A |
| 유형 | DRY VACUUM CLEANER OR WET& DRY VACUUM CLEANER |
| 전압 | 110V~120V / 220V~240V |
| Consumption Power | 1050W~1250W / 1150W~1350W |
| Max Vacuum | 2450 mmH2O±10% |
| 기류 | 2.9m³/min±10% |
| Drum Capacity | 38L |
| Drum Material | ABS |
| Measurement (LxWxH) | 790x545x560 (mm) |
| 무게 | 16.66kgs(For Dry type) / 16.76kgs(For Wet & Dry type) |
……………………………………………………………

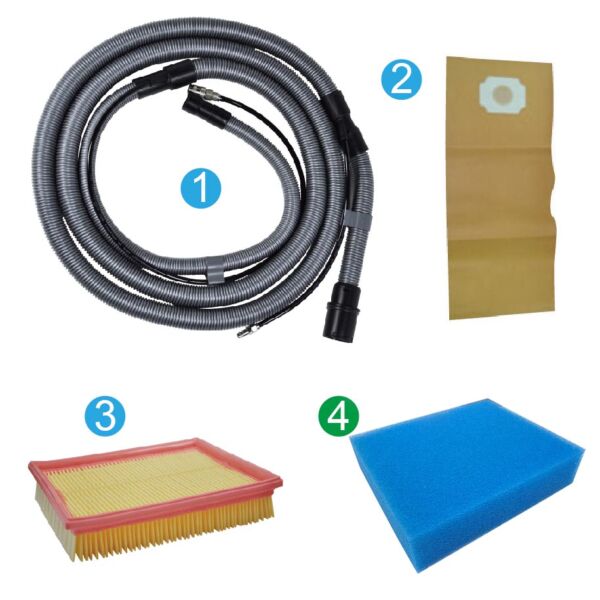

Accessory：
1) 2 in 1 Hose for Pneumatic tools(5M)*1pc
2) 124 Paper bag (for dry/ 830*350mm)*1pc
3) Paper Filter (for dry/ 225*190*50mm) *1pc
4) Wet Filter *1pc (For wet & dry vacuum cleaner)
……………………………………………………………

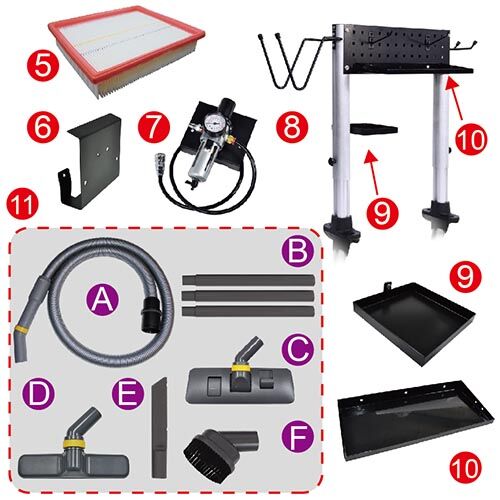

Optional Accessory:
5) Paper Filter (for dry/ M dust class / 225*190*50mm) *1pc(Option)
6) Hose hook*1set (Option)
7) Air Filter Regulator Set (6kg/cm2)*1set (Option)
(Attached Hose hook*1pc)
8) Tool rack set(Carton size: 54.5*23.5*59cm)*1set (Option)
(Attached Tool set*1set、Pad hook*5pcs、Tool hook*1pc、Multipurpose hook*1pc)
9) Compartment Tray(Small) (165*167*22mm)*1set (Option)
10) Compartment Tray(Big)(364*170*32mm)*1set (Option)
11) Accessory*1 set (Option) (For wet & dry vacuum cleaner)
A. 1.25”Hose Set- C (1.8M)+ Curved Pipe (Air Flow Adjustment)*1 set
B. 1.25”Extension Wands*3pcs
C. 1.25”Master Nozzle*1pc (For dry)
D. 1.25”Wet Nozzle *1pc (For wet)
E. 1.25”Crevice Tool*1pc
F. 1.25”Round Nozzle*1pc
……………………………………………………………
Character:
1) Offer double filtering systems. Enclose high capacity collection bag, clean-up easily.
먼지를 걸러내는 여과지가 부착되어 있습니다.
2) Two start-up controls: manual or automatics.
3) Vacuum cleaner’s suction can be adjust.
4) For pneumatic tools, offer convenient while working.
5) For electric tools, offer convenient while working.
6) Enclose 5 meter 2-in-1 dust collecting hoses.
7) Could be combined with hose hook to collect hose. (Option)
8) Install wet filter before extracting liquid. When the liquid reaches max water level, it will remind the user to empty the bucket by stopping the machine automatically.(For wet& dry vacuum cleaner)
9) Could be combined with air filter regulator (including hose hook) to filter dust in hose of Air compressor. (Option)
10) Could combine tray and tool set with vacuum cleaner′s function, also the tool set is height adjustable. Including single hook, multifunctional hook and tool hook are able to be placed abrasive paper. Let users have complete storage function and tool assistance, thus the operation is more convenient. (Option)
11) The computer service connections, check operational information and unusual
situations, also record the after-sale services …etc. (Option)
12) The vacuum cleaner can also be used for wet pick-up with accessories to increase operating convenience. (Option) (For wet& dry vacuum cleaner)
