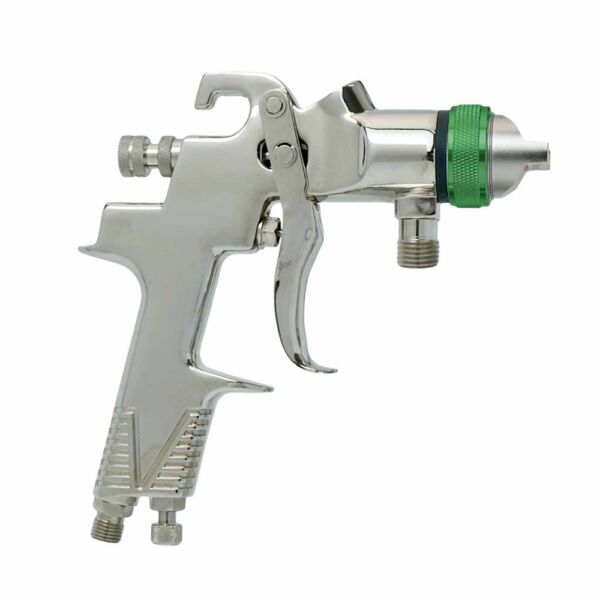

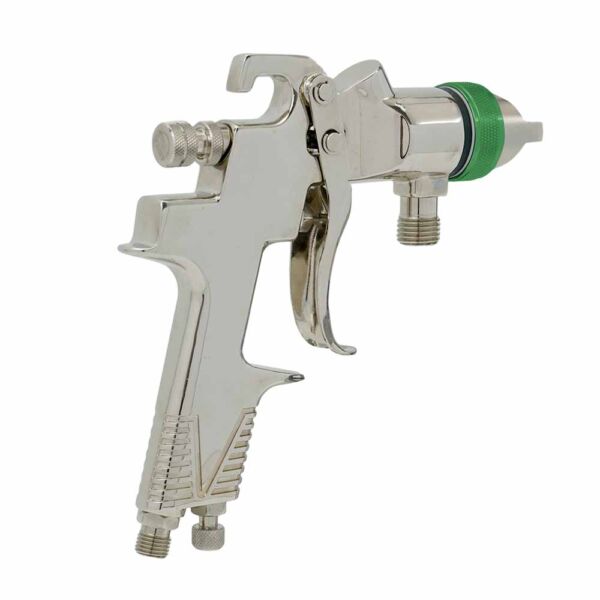

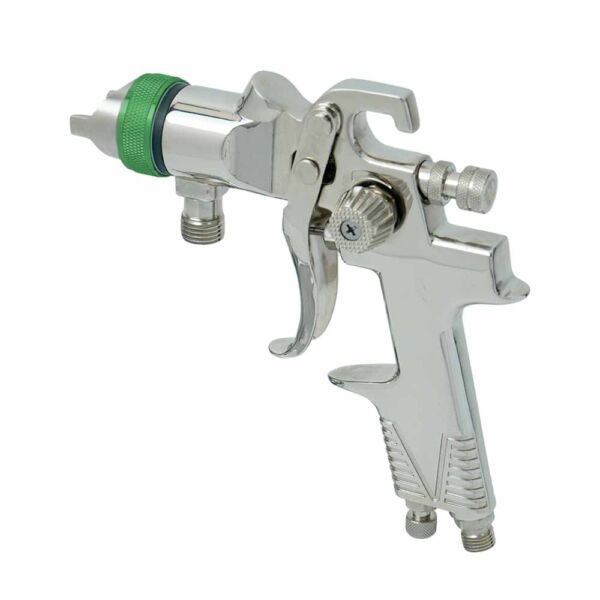

H.V.L.P. pressure feed spray gun with excellent fine atomization, suitable for connecting with diaphragm pump or paint pressure tank for mass painting work on construction or industrial purpose. Equipped with a spanner and a cleaning brush.
Specification | Turn – up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
K-866P-13 | 1.3 mm | 130 ml | 290 mm | 260 l/min | SG018-866S-13 | 1.3 mm |
K-866P-14 | 1.4 mm | 140 ml | 300 mm | 260 l/min | SG018-866S-14 | 1.4 mm |
K-866P-15 | 1.5 mm | 165 ml | 300 mm | 260 l/min | SG018-866S-15 | 1.5 mm |
K-866P-17 | 1.7 mm | 185 ml | 300 mm | 260 l/min | SG018-866S-17 | 1.7 mm |
K-866P-20 | 2.0 mm | 195 ml | 310 mm | 260 l/min | SG018-866S-20 | 2.0 mm |
K-866P-25 | 2.5 mm | 250 ml | 330 mm | 260 l/min | SG018-866S-25 | 2.5 mm |
K-866P-30 | 3.0 mm | 260 ml | 330 mm | 260 l/min | SG018-866S-30 | 3.0 mm |
K-866P-35 | 3.5 mm | 270 ml | 330 mm | 260 l/min | SG018-866S-35 | 3.5 mm |
• Type : Pressure Feed • Cup Capacity : Non • Fluid Inlet : 3/8″ • Air Inlet : 1/4″ | • Working Pressure : 20~28 psi • Standard Nozzle : 1.7 mm • Gun Weight : 630 gs |  | ||||
