Product Manual
Model | EVC-J225 |
| Consumption Power | 2200W |
| Max Vacuum | 2200mmH2O |
| Air Flow | 5.6m³/min |
| Drum Capacity | 80L |
| Drum Material | Stainless |
| Voltage | 110V,220V,230V,240V |
| Measurement (LxWxH) | 595x575x935 (mm) |
| Weight | 32.8kgs |
……………………………………………………………

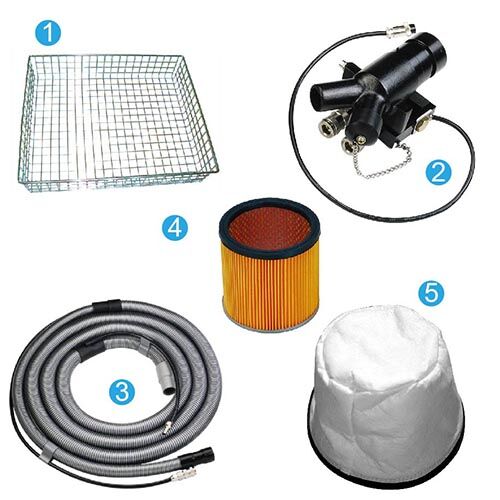

Accessary：
1) Basket*1set
2) Y-join Set & Automatic unit for Pneumatic tools*1pcs
3) 2 in 1 Hose for Pneumatic tools (5M)*2PCS
4) Paper Filter SH180 (Φ188*H180mm)*1pc
5) Cloth Filter(225C) *1pc
……………………………………………………………

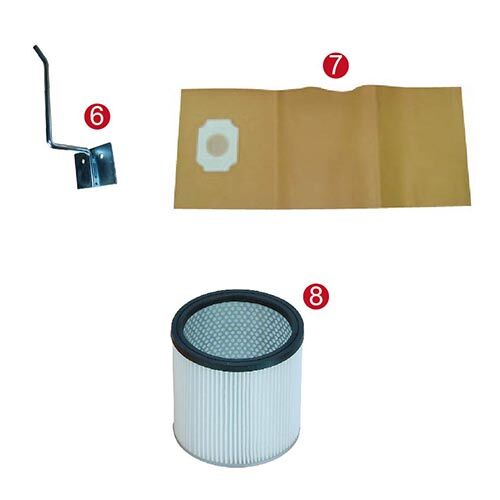

Optional Accessory:
6) Hose hanger- B Type*2pcs (Option)
7) 124 Paper bag(830*350mm)*1pc (Option)
8) HEPA Filter *1pc(Option)
……………………………………………………………
Optional Accessory Kit：
A. 1.25”Hose Set- C (1.8M)+ Curved Pipe (Air Flow Adjustment)*1 set
B. 1.25”Extension Wands*3pcs
C. 1.25”Master Nozzle*1pc (For dry)
D. 1.25”Wet Nozzle *1pc (For wet)
E. 1.25”Crevice Tool*1pc
F. 1.25”Round Nozzle*1pc
……………………………………………………………
Character:
1) Two motors model is very powerfully which can be use up to two persons increase the efficiency.
2) Two start-up controls: manual or automatics.
3) Vacuum cleaner′s suction can be adjust.
4) The pneumatic tools triggered synchronize starting machines, offer convenient while working.
5) The electric tools triggered synchronize starting machines, offer convenient while working.
6) Enclose 5 meter 2-in-1 dust collecting hoses.
7) The large trolley with 7.5”rear wheels, relax and move steadily.
8) Offer triple filtering systems, enclose high capacity paper bag, clean-up easily. (Option)
9) Enclose the large tool basket, convenient to keep tools you need at hand.
10) The hooks are convenient to collect hoses and cords. (Option)
11) CE certified by SGS, to guarantee high quality and safety.
12) The computer service connections, check operational information and unusual situations, also record the after-sale services …etc. (Option)
13) Indicating to replace the motor carbons. (Option)
