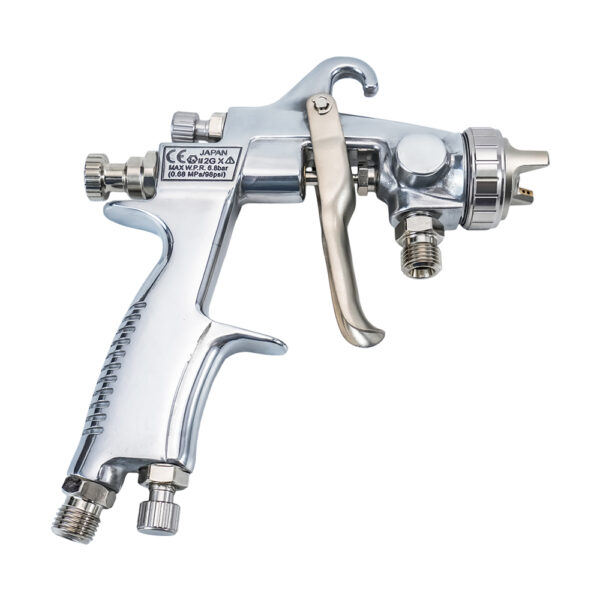

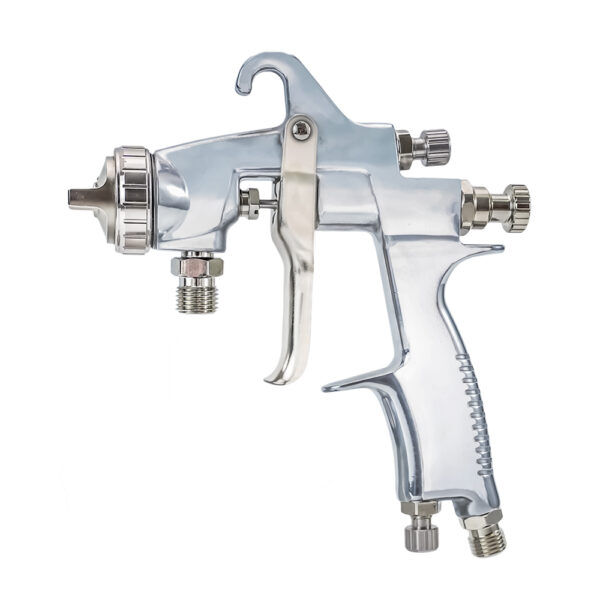

Conventional pressure feed spray gun, suitable for connecting with diaphragm pump or paint pressure tank for mass painting work.
Equipped with a spanner and a cleaning brush.
Specification | Turn – up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
K-102P-08 | 0.8 mm | 200 ml | 270 mm | 220 l/min | SG008-102-08 | 0.8 mm |
K-102P-10 | 1.0 mm | 220 ml | 280 mm | 220 l/min | SG008-102-10 | 1.0 mm |
K-102P-13 | 1.3 mm | 170 ml | 270 mm | 200 l/min | SG008-102-13 | 1.3 mm |
K-102P-15 | 1.5 mm | 190 ml | 280 mm | 200 l/min | SG008-102-15 | 1.5 mm |
K-102P-18 | 1.8 mm | 210 ml | 280 mm | 230 l/min | SG008-102-18 | 1.8 mm |
K-102P-20 | 2.0 mm | 240 ml | 280 mm | 230 l/min | SG008-102-20 | 2.0 mm |
K-102P-25 | 2.5 mm | 270 ml | 290 mm | 230 l/min | SG008-102-25 | 2.5 mm |
• Type : Pressure Feed • Cup Capacity : Non • Fluid Inlet : 1/4″ • Air Inlet : 1/4″ | • Working Pressure : 30~43 psi • Standard Nozzle : 1.8 mm • Gun Weight : 410 gs |  | ||||
