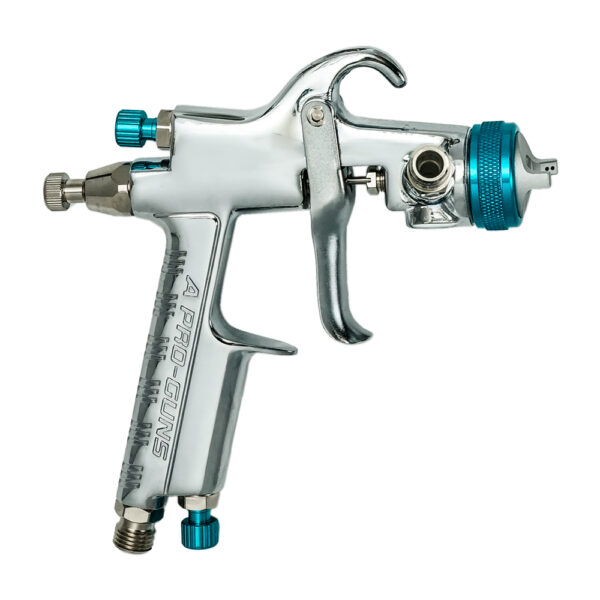

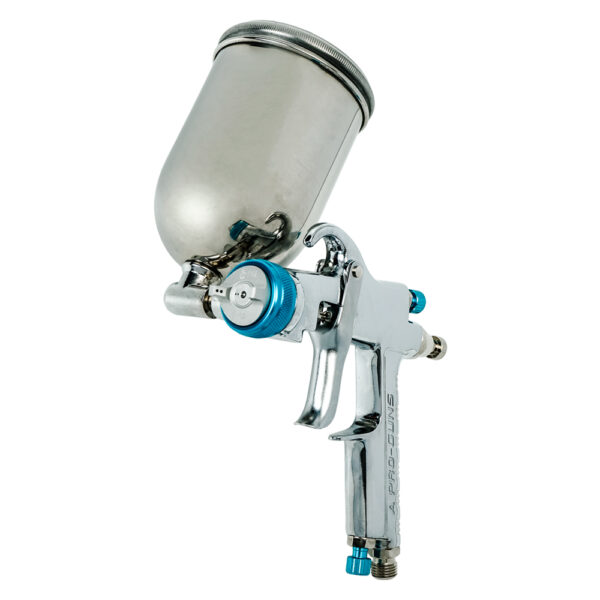

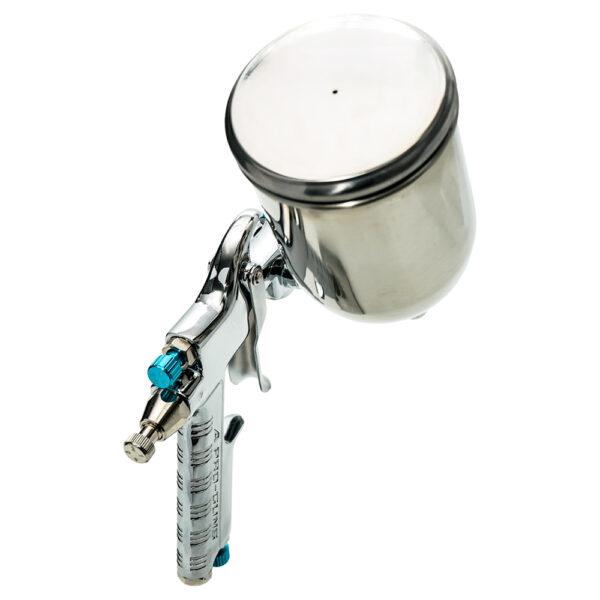

K-600G is a gravity feed spray gun. Equipped with a 400c.c. gravity Stainless Cup, Cleaning Brush, and Spanner.
- Gun Body- is made of aluminum Die-Casting and carefully polished for finest surface. Friendly holding design.
- Fluid Nozzle and Paint Needle- are precisely made of stainless steel with hardened nozzle. That provides finest atomization and perfect finish. 100% strictly hand-checked nozzle set ensures the highest quality for complete spray gun as well as whole range of spare nozzle set. It can be used with water-borne paint materials.
- Air Cap- the special aluminum cap provides excellent atomization as well.
- Teflon Material Seals & Packing- are resistant from acid, alkali and solvent for ensuring long lifetime. Less maintenance needed.
- With Built- in Air Regulator, Material Flow Regulator, and Round/Oval Pattern Control Device.
Specification | Turn – up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
K-600G-08 | 0.8 mm | 100 ml | 275 mm | 240 l/min | SG008-600-08 | 0.8 mm |
K-600G-11 | 1.1 mm | 140 ml | 290 mm | 240 l/min | SG008-600-11 | 1.1 mm |
K-600G-13 | 1.3 mm | 160 ml | 295 mm | 240 l/min | SG008-600-13 | 1.3 mm |
K-600G-14 | 1.4 mm | 170 ml | 300 mm | 240 l/min | SG008-600-14 | 1.4 mm |
K-600G-18 | 1.8 mm | 230 ml | 310 mm | 240 l/min | SG008-600-18 | 1.8 mm |
K-600G-20 | 2.0 mm | 250 ml | 320 mm | 240 l/min | SG008-600-20 | 2.0 mm |
• Type : Gravity Side Cup • Cup Capacity : 400 c.c. • Fluid Inlet : 1/4″ • Air Inlet : 1/4″ | • Working Pressure : 30~43 psi • Standard Nozzle : 1.4 mm • Gun Weight : 315 gs |  | ||||
