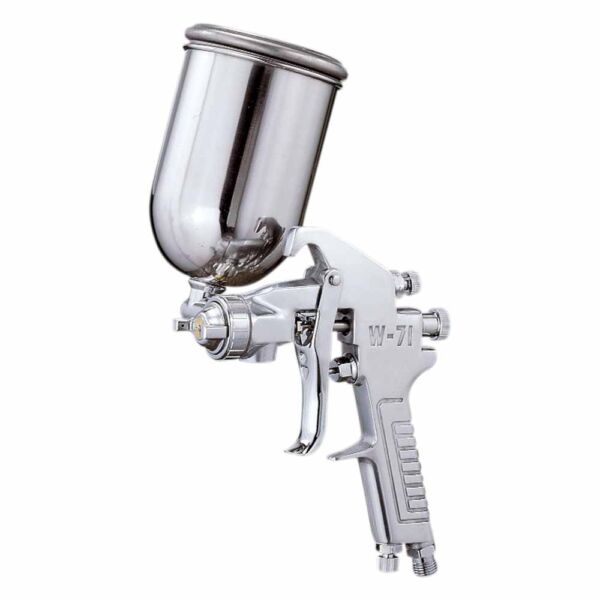

Conventional gravity feed spray gun, suitable for vehicle, machine, woodworking and furniture industrial etc….
Equipped with a 400c.c. stainless gravity cup, a spanner, a cleaning brush.
Specification | Turn – up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
| W-71G-10 | 1.0 mm | 110 ml | 240 mm | 200 l/min | SG008-71G-10 | 1.0 mm |
| W-71G-13 | 1.3 mm | 180 ml | 260 mm | 200 l/min | SG008-71G-13 | 1.3 mm |
| W-71G-15 | 1.5 mm | 200 ml | 270 mm | 200 l/min | SG008-71G-15 | 1.5 mm |
| W-71G-18 | 1.8 mm | 230 ml | 280 mm | 210 l/min | SG008-71G-18 | 1.8 mm |
• Type : Gravity Side Cup • Cup Capacity : 400 c.c. • Fluid Inlet : 1/4″ • Air Inlet : 1/4″ | • Working Pressure : 30~43 psi • Standard Nozzle : 1.4 mm • Gun Weight : 460 gs |  | ||||
