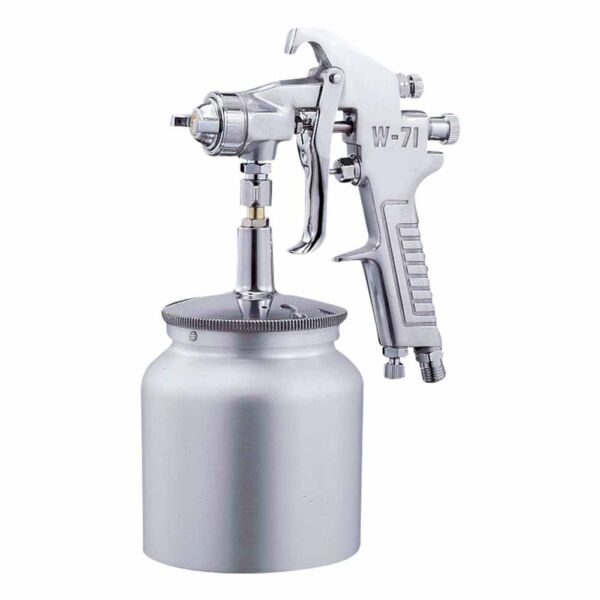

Conventional suction type spray gun, qualified for painting work on construction or industrial purpose.
Equipped with a 700c.c. aluminum siphon cup, a spanner and a cleaning brush. 1,000c.c. Aluminum cup is under request.
Specification | Turn – up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
| W-71S-10 | 1.0 mm | 200 ml | 280 mm | 200 l/min | SG008-71S-10 | 1.0 mm |
| W-71S-13 | 1.3 mm | 170 ml | 260 mm | 200 l/min | SG008-71S-13 | 1.3 mm |
| W-71S-15 | 1.5 mm | 185 ml | 270 mm | 200 l/min | SG008-71S-15 | 1.5 mm |
| W-71S-18 | 1.8 mm | 220 ml | 280 mm | 210 l/min | SG008-71S-18 | 1.8 mm |
• Type : Suction • Cup Capacity : 700 c.c. • Fluid Inlet : 1/4″ • Air Inlet : 1/4″ | • Working Pressure : 30~43 psi • Standard Nozzle : 1.5 mm • Gun Weight : 460 gs |  | ||||
