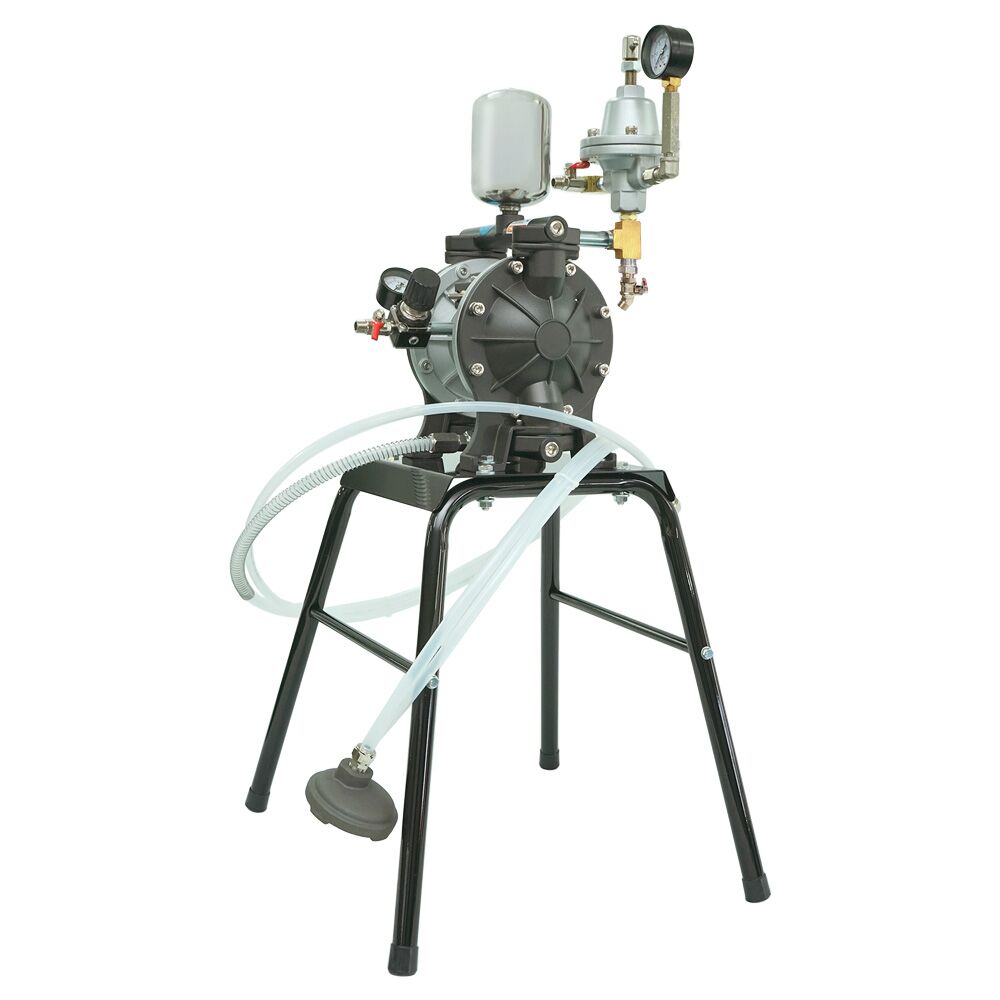

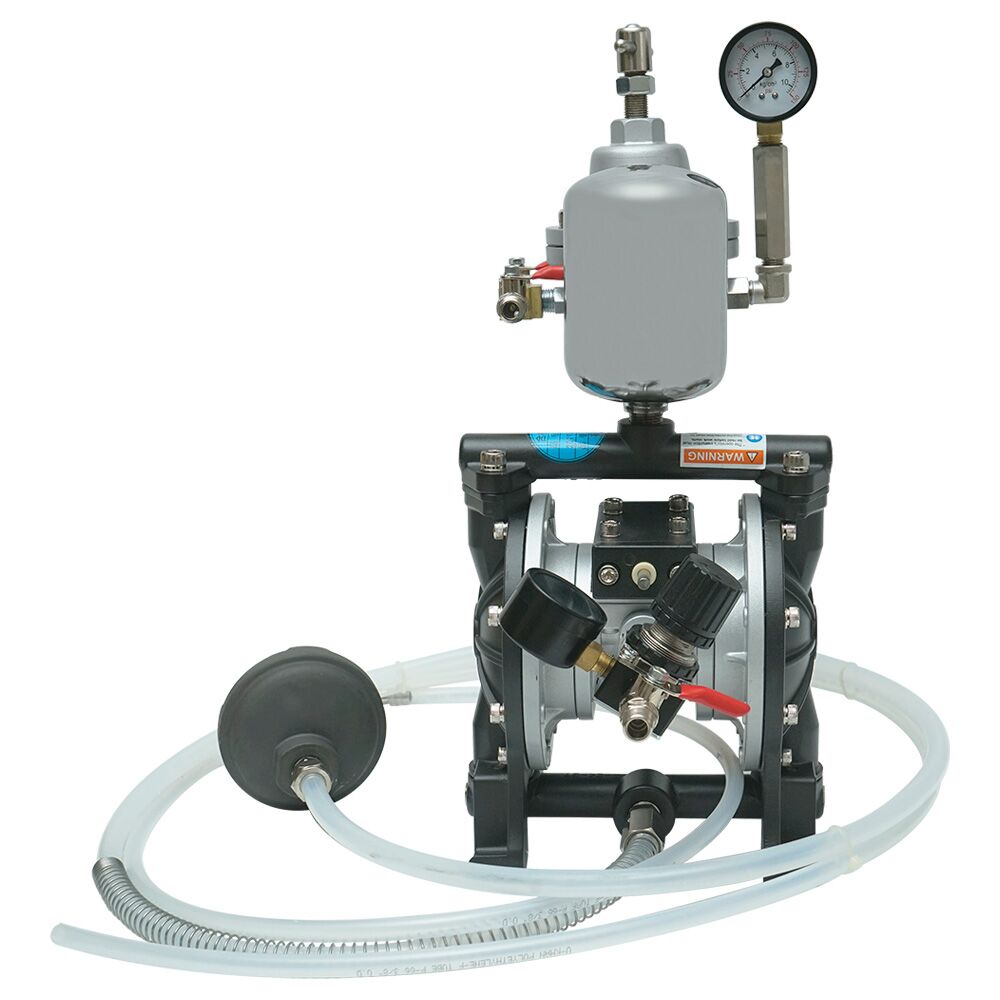

This high quality Twin Diaphragm Pumps can easily pump anything from water, paint, lube oil, detergents, or even antifreeze at a maximum flow rate of 25L/min. The high quality twin diaphragms are made from Teflon to extend life and improve pump efficiency. Constructed from lightweight but sturdy ADC-12 material, this twin diaphragm pump will provide you with years of worry free use when properly maintained and used as directed.
These are popular with spray painters who want to run one or two spray gun off the one pump. Great for industrial paint jobs. They can also be used to pump paint around a factory to different painting locations.
☑ 规格
最大流量 | 6.61 Gallon/Per Min. ; 25 Liter/Per Min. |
|---|---|
平均空气缺点。 | 180 Liter / Per Min. ; 6.35 Scfm / Per Min. |
最低压力 | 0.5 巴 (kgf/cm²) ; 7.25 磅/平方英寸 |
最大压力 | 8.3 巴 (kgf/cm²) ; 120 磅/平方英寸 |
Working Pressure Advised | 1.5 ~ 5 巴 (kgf/cm²) ; 21.75 psi ~ 72.5 psi |
数量/周期 | 80 ml |
净重 | 6 kg |
组装尺寸 | 41(L)cm x 28(W)cm x 49(H)cm |
空气入口 | 1/4″ PT (BSP) |
出风口 | 1/4″ PT (BSP) |
液体入口/出口 | 3/8″ PT (BSP) |
入口提升（深） | 6米湿; 3.7 m- 干 |
固体极限 | Ø1.5 mm |
