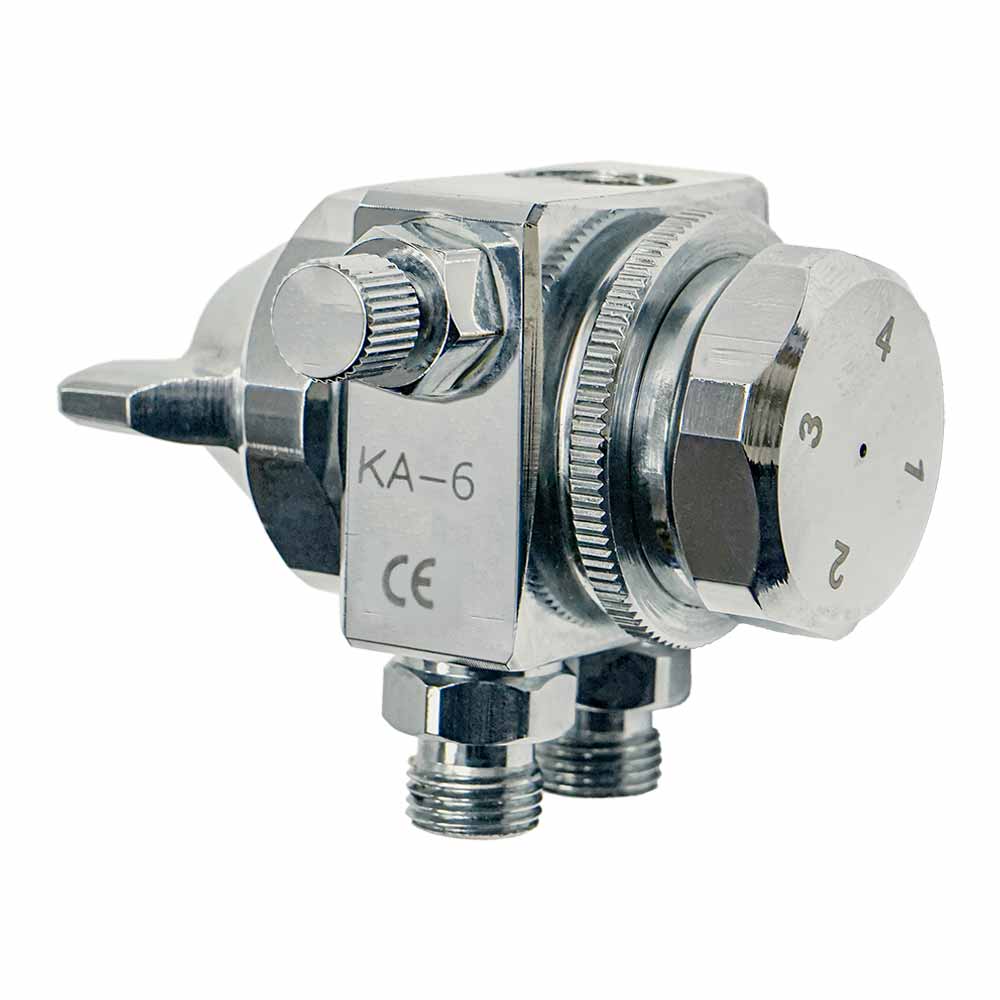

KA-6 is an automatic spray gun. Offering dual function of liquid spraying and air blowing. It’s suitable for most liquid spraying and surface coating.
The compact automatic spray gun is ideal for reciprocating or rotary machines, fixed spray positions or programmable robots. Stainless steel fluid nozzle and needle withstand water-based or corrosive materials.
Application:
Mounted on robot machine for automatic coating: Put moisture on the surface of objects, Spray liquid on mold of die-casting machines, Waterproof process for clothes and paper, Metal, Wood, Plastic, and others…
Spezifikation | Turn – up Kit | |||||
|---|---|---|---|---|---|---|
Modell Nr | Düsengröße | Fluidausgabe | Musterbreite | Luftverbrauch | Modell Nr | Düsengröße |
| KA-6-10 | 1.0 mm | 0-250 ml | 300 mm | 80 l/min | SG008-6-10 | 1.0 mm |
| KA-6-13 | 1,3mm | 0-360 ml | 400 mm | 100 l/min | SG008-6-13 | 1,3mm |
| KA-6-20 | 2.0 mm | 0-600 ml | 400 mm | 140 l/min | SG008-6-20 | 2.0 mm |
| • Type : Pressure Feed • Cup Capacity : Non • Fluid Inlet : 1/8″ • Air Inlet : 1/8″ | • Working Pressure : 30~43 psi • Standard Nozzle : 1.3 mm • Gun Weight : 250 gs |  | ||||
