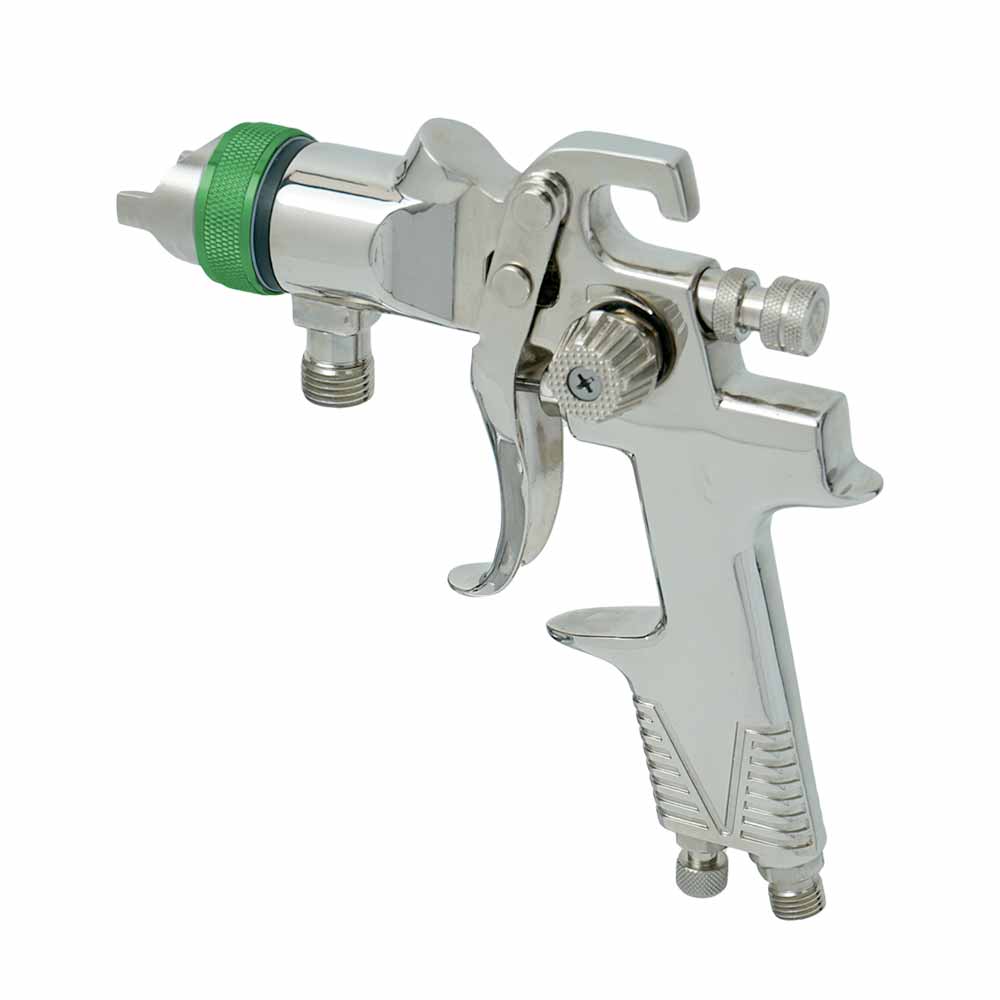

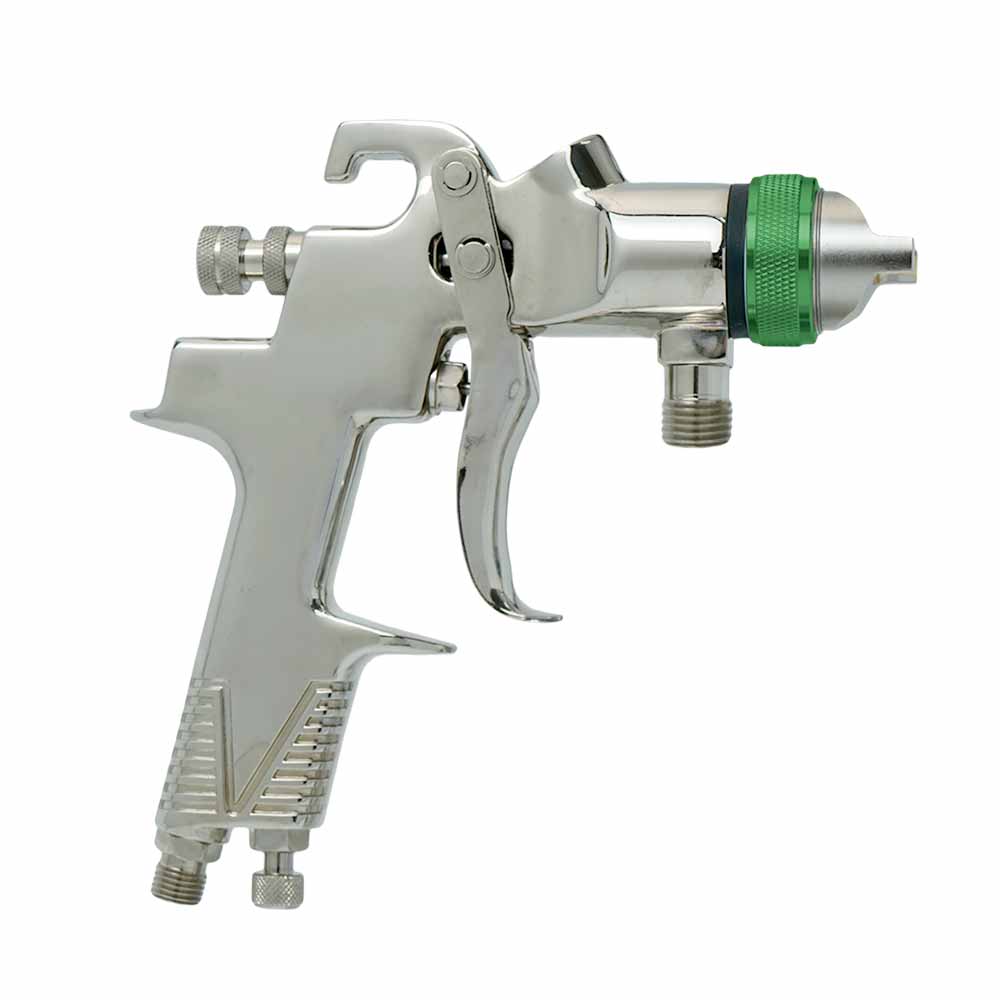

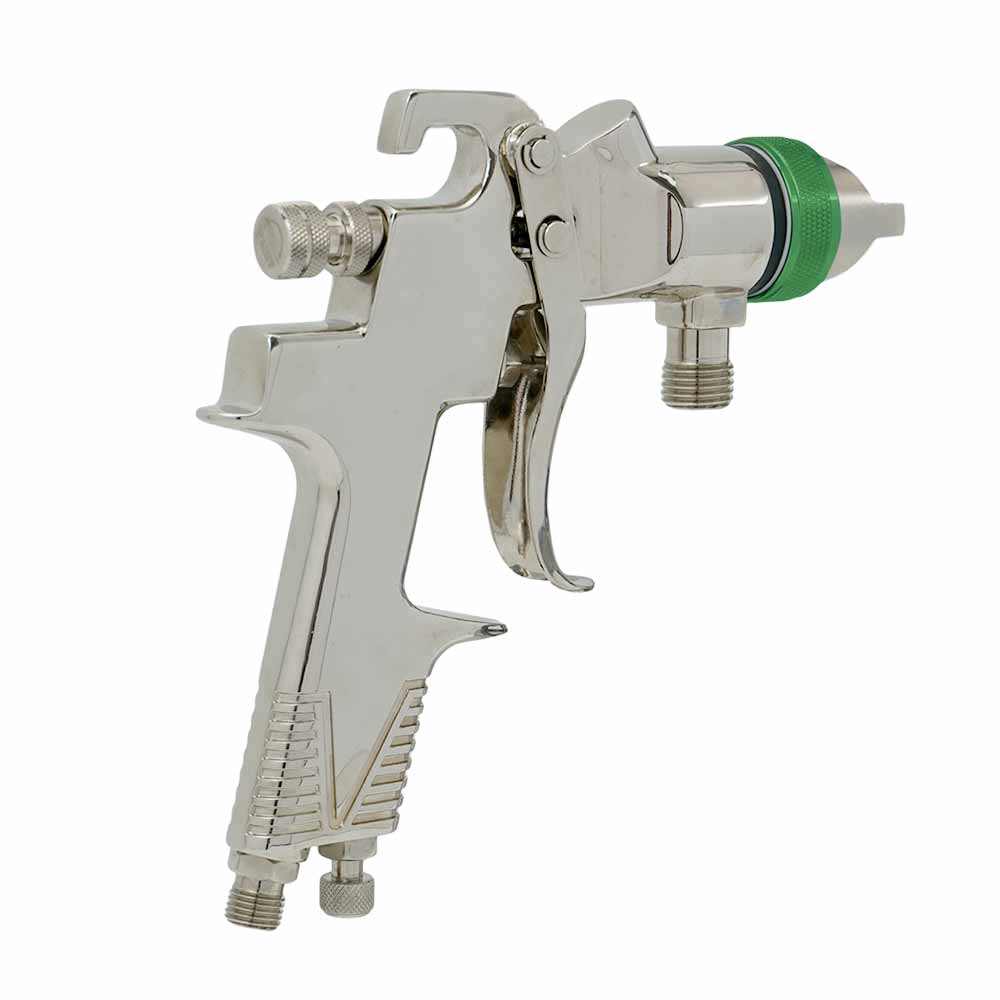

H.V.L.P. pressure feed spray gun with excellent fine atomization, suitable for connecting with diaphragm pump or paint pressure tank for mass painting work on construction or industrial purpose. Equipped with a spanner and a cleaning brush.
Especificación | Kit de giro | |||||
|---|---|---|---|---|---|---|
N º de Modelo | Tamaño de boquilla | Salida de fluido | Ancho del patrón | Consumo de aire | N º de Modelo | Tamaño de boquilla |
K-866P-13 | 1,3 mm | 130ml | 290mm | 260 l/min | SG018-866S-13 | 1,3 mm |
K-866P-14 | 1,4mm | 140ml | 300mm | 260 l/min | SG018-866S-14 | 1,4mm |
K-866P-15 | 1,5mm | 165ml | 300mm | 260 l/min | SG018-866S-15 | 1,5mm |
K-866P-17 | 1.7 mm | 185 ml | 300mm | 260 l/min | SG018-866S-17 | 1.7 mm |
K-866P-20 | 2,0 mm | 195 ml | 310mm | 260 l/min | SG018-866S-20 | 2,0 mm |
K-866P-25 | 2,5 mm | 250ml | 330mm | 260 l/min | SG018-866S-25 | 2,5 mm |
K-866P-30 | 3.0 mm | 260ml | 330mm | 260 l/min | SG018-866S-30 | 3.0 mm |
K-866P-35 | 3.5 mm | 270ml | 330mm | 260 l/min | SG018-866S-35 | 3.5 mm |
• Type : Pressure Feed • Cup Capacity : Non • Fluid Inlet : 3/8″ • Entrada de aire: 1/4″ | • Presión de trabajo: 20~28 psi • Standard Nozzle : 1.7 mm • Gun Weight : 630 gs |  | ||||
