☑ Features
- Compact design.
- Compatible with other manufacturer’s Industrial Interchange.
- Six stainless steel locking balls design.
- Certificate of RoHS compliance.
☑ Application
Pneumatic tools、Air piping、Air pressure equipment
☑ Specification

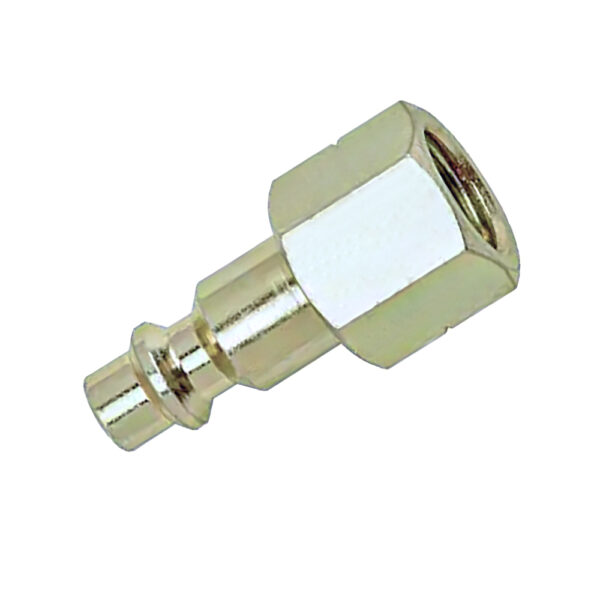

Part No. | S25-20PFA | S25-30PFA | S25-40PFA |
|---|---|---|---|
Size | 1/4″ NPT | 3/8″ NPT | 1/2” NPT |
Thread | NPT | ||
Working Pressure | 218 PSI (15 Bar / 1.5 MPa) | ||
Maximum Pressure | 290 PSI (20 Bar / 2 MPa) | ||
Temperature Range | -20 ℃ ~ +80 ℃ | ||
