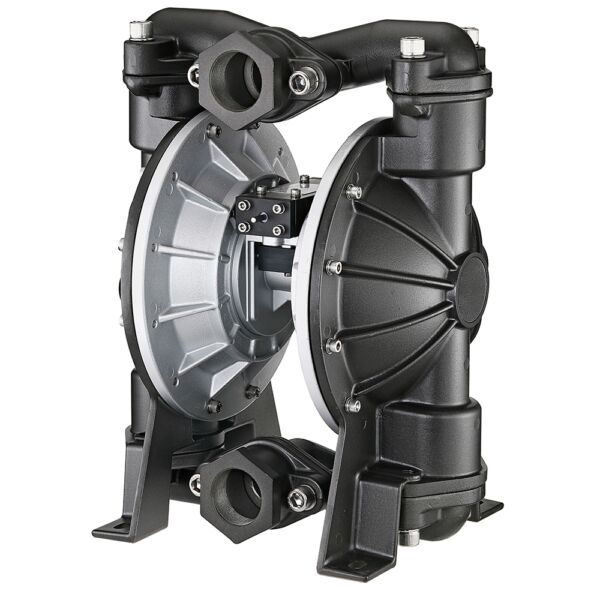

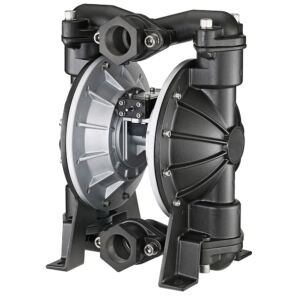

Compact, Rugged Design Allows For Easy Mobility, Motor Design Delivers Optimum Air Efficiency, Available In Aluminum, Cast Iron Or Stainless Steel To Withstand Tough Chemical Applications, Bolted Construction For Leak-Free Fluid Handling, Easy Access To Ball Checks And Fluid Caps For Maintenance And Repairs.
☑ Specification
Max Flow Rate | 153.03 Gallon / Per Min. ; 580 Liter / Per Min. |
|---|---|
Avg. Air Cons. | 3600 Liter / Per Min. ; 127.08 Scfm / Per Min. |
Lowest Pressure | 1.2 Bar (kgf/cm²) ; 17.4 psi |
Max Pressure | 8.3 Bar (kgf/cm²) ; 120 psi |
Working Pressure | 2 ~ 5.5 Bar (kgf/cm²) ; 29 psi ~ 79.75 psi |
Quantity / Cycle | 2.5 L |
Net Weight | 28 kg |
Assemble Size | 43(L)cm x 34(W)cm x 54(H)cm |
Air Inlet | 1/2″ PT (BSP) |
Air Outlet | 1″ PT (BSP) |
Liquid Inlet / Outlet | 2″ PT (BSP) |
Inlet Lift (Deep) | 6 m-wet ; 3.7 m- dry |
Solid Limit | Ø 6.4 ~ 8 mm |
