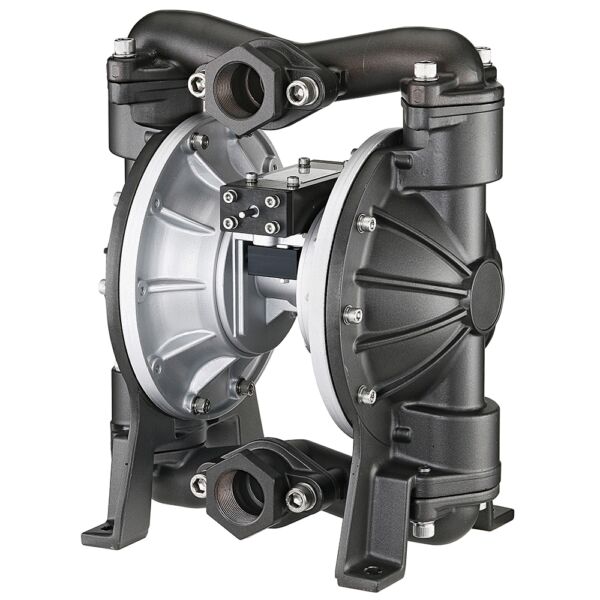

DP14-A 1-1/2″ Diaphragm Pump /Aluminum Alloy

Name: DP14-A 1-1/2" Diaphragm Pump /Aluminum Alloy - Prowin Tools
Availability: InStock

Product No.: DP14-A Categories: Stainless Steel Pump, Diaphragm Pump

Prowin Tools Company’s air-powered double-diaphragm pumps are highly praised for cost effective in a wide range of special applications. They can delivery sludges and slurries with grit, high viscous liquids, chemicals, cement, etc. The products will not be damaged while idling for a long period of time. They can be safely used in hazardous environments, need no control equipment and cause no electrical danger. The pressure of the outlet of the pumps could be regulated when the machine is running, and there is no need to install any high-cost speed-changeable motor or drive device.

If You Are Searching For diaphragm pumps Manufacturer, Please Feel Free To Contact Us.

描述

Compact, Rugged Design Allows For Easy Mobility, Motor Design Delivers Optimum Air Efficiency, Available In Aluminum, Cast Iron Or Stainless Steel To Withstand Tough Chemical Applications, Bolted Construction For Leak-Free Fluid Handling, Easy Access To Ball Checks And Fluid Caps For Maintenance And Repairs.

☑ Specification

Max Flow Rate	89.7 Gallon / Per Min. ; 340 Liter / Per Min.
Avg. Air Cons.	2400 Liter / Per Min. ; 84.72 Scfm / Per Min.
Lowest Pressure	1.2 Bar (kgf/cm²) ; 17.4 psi
Max Pressure	8.3 Bar (kgf/cm²) ; 120 psi
Working Pressure	2 ~ 5.5 Bar (kgf/cm²) ; 29 psi ~ 79.75 psi
Quantity / Cycle	1.45 L
Net Weight	18 kg
Assemble Size	39(L)cm x 29(W)cm x 46(H)cm
Air Inlet	1/2″ PT (BSP)
Air Outlet	1″ PT (BSP)
Liquid Inlet / Outlet	1-1/2″ PT (BSP)
Inlet Lift (Deep)	6 m-wet ; 3.7 m- dry
Solid Limit	Ø 4.8 ~ 6 mm
