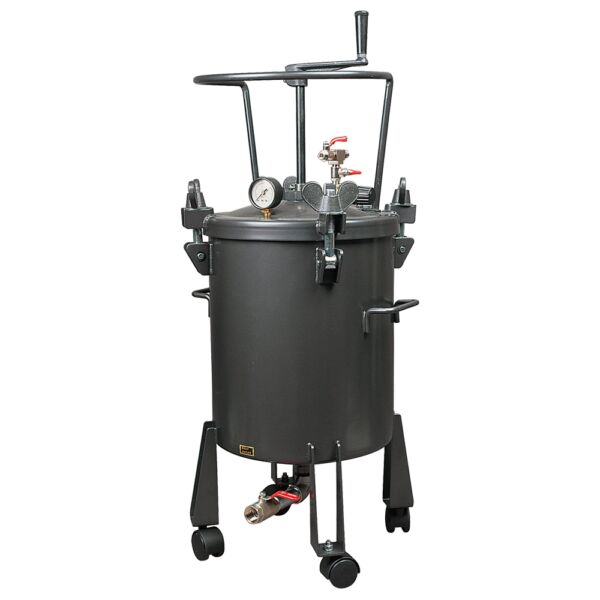

- One-piece formed pressure tank.
- Heavy pressed steel lid.
- Special designed forged steel clamp.
- Auto Pressure discharge safety valve.
- All models are equipped with top outlet.
- Comply to CE certificate.
- Equipped with Air Regulator and Pressure Gauge.
☑ Specification
Capacity | 20 L |
|---|---|
Air Inlet | 1/4″ |
Fluid Outlet | 1/4″ (or 3/8″) |
Tank Dimension | 318 I.D. × 330 O.D. × 523 H × 2.5 T |
Lid Dimension | 330 I.D. × 340 O.D. × 5 T |
Measurement | 410 L × 325 W × 925 H (mm) |
Max. Working Pressure | 4.1bar / 60psi |
Packing | 22 N.W. × 24.8 G.W. × 4.5 CUFT |
