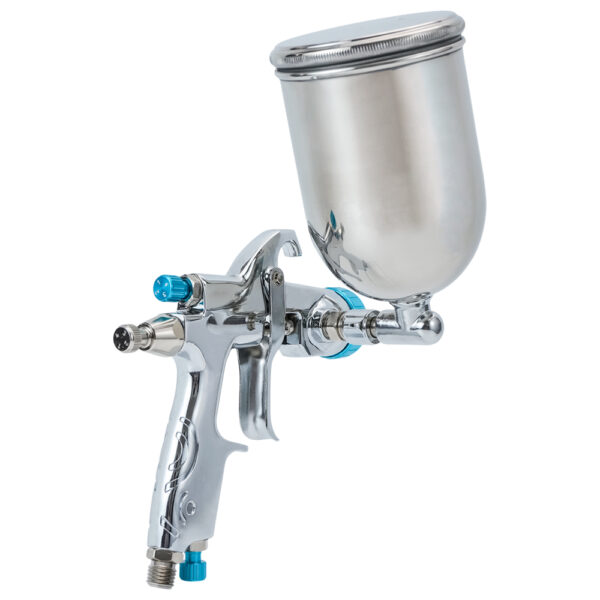

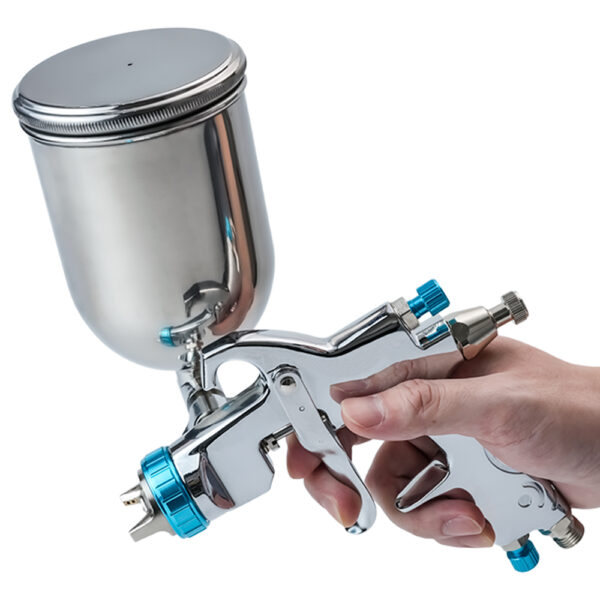

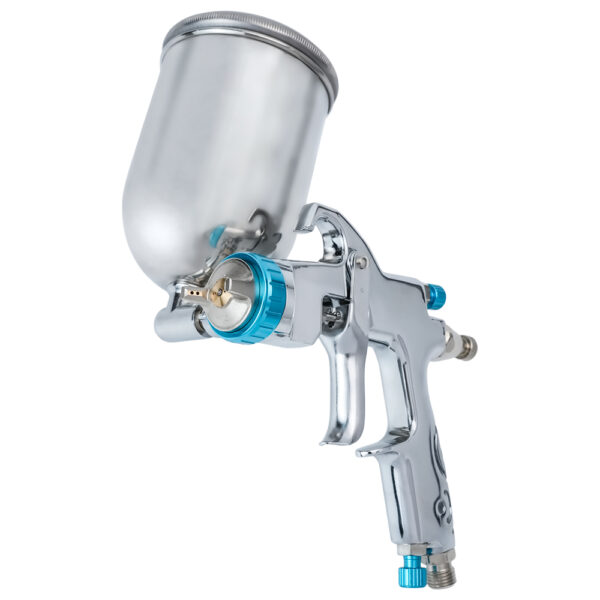

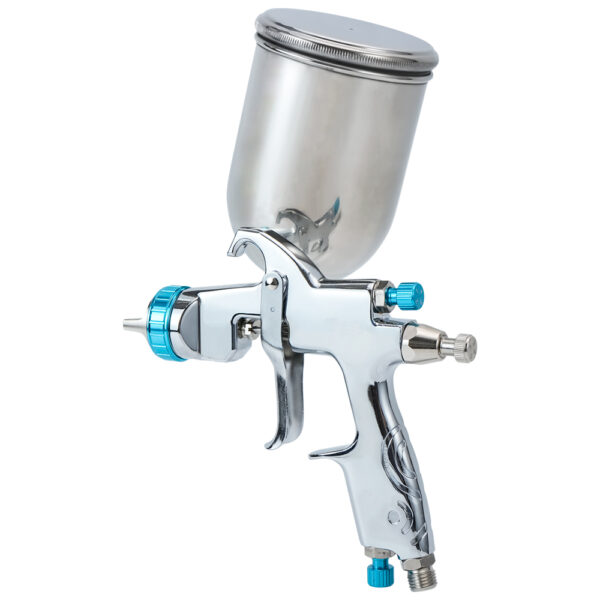

Conventional gravity feed spray gun, suitable for vehicle, machine, woodworking and furniture industrial etc….
Equipped with a 400c.c. stainless gravity cup, a spanner, a cleaning brush.
Specification | Turn – up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
K-607G-08 | 0.8 mm | 100 ml | 230 mm | 220 l/min | SG008-607-08 | 0.8 mm |
K-607G-10 | 1.0 mm | 115 ml | 240 mm | 220 l/min | SG008-607-11 | 1.0 mm |
K-607G-13 | 1.3 mm | 190 ml | 270 mm | 220 l/min | SG008-607-13 | 1.3 mm |
K-607G-15 | 1.5 mm | 210 ml | 280 mm | 220 l/min | SG008-607-14 | 1.5 mm |
K-607G-18 | 1.8 mm | 250 ml | 280 mm | 220 l/min | SG008-607-18 | 1.8 mm |
K-607G-20 | 2.0 mm | 280 ml | 290 mm | 220 l/min | SG008-607-20 | 2.0 mm |
K-607G-25 | 2.5 mm | 310 ml | 290 mm | 220 l/min | SG008-607-25 | 2.5 mm |
• Type : Gravity Side Cup • Cup Capacity : 400 c.c. • Fluid Inlet : 1/4″ • Air Inlet : 1/4″ | • Working Pressure : 30~43 psi • Standard Nozzle : 1.4 mm • Gun Weight : 315 gs |  | ||||
