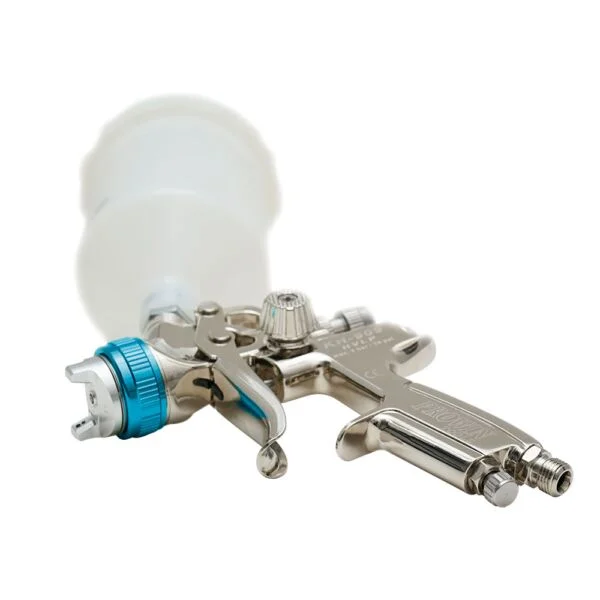

H.V.L.P. gravity feed spray gun with excellent atomization, suitable for industrial purpose and car refinishing painting. Equipped with a 600c.c. gravity cup, a spanner, a cleaning brush and a paint filter.
Specification | Turn – up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
KH-909M-13 | 1.3 mm | 120 ml | 330 mm | 260 l/min | SG018-909-13 | 1.3 mm |
KH-909M-14 | 1.4 mm | 140 ml | 330 mm | 260 l/min | SG018-909-14 | 1.4 mm |
KH-909M-17 | 1.7 mm | 165 ml | 340 mm | 260 l/min | SG018-909-17 | 1.7 mm |
KH-909M-19 | 1.9 mm | 190 ml | 340 mm | 260 l/min | SG018-909-19 | 1.9 mm |
KH-909M-21 | 2.1 mm | 230 ml | 350 mm | 260 l/min | SG018-909-21 | 2.1 mm |
KH-909M-25 | 2.5 mm | 280 ml | 360 mm | 260 l/min | SG018-909-25 | 2.5 mm |
• Type : Gravity • Cup Capacity : 600 c.c. • Fluid Inlet : M16×1.5P • Air Inlet : 1/4″ | • Working Pressure : 20~28 psi • Standard Nozzle : 1.4 mm • Gun Weight : 450 gs |  | ||||
