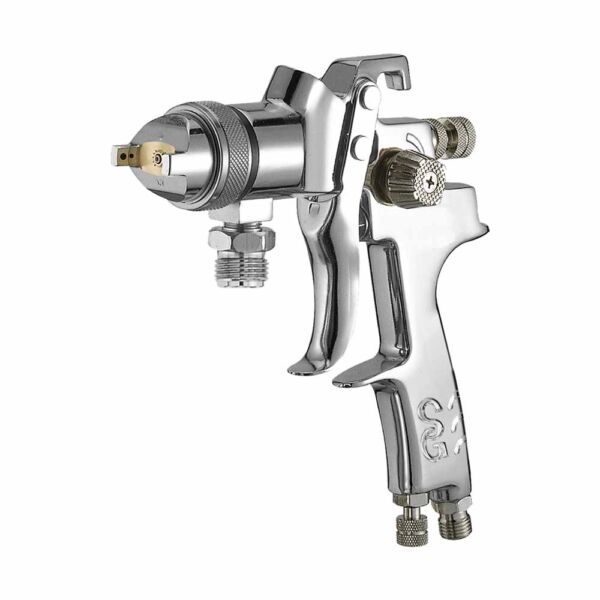

Conventional pressure feed spray gun, suitable for connecting with diaphragm pump or paint pressure tank for mass painting work on construction or industrial purpose. Equipped with a spanner and a cleaning brush.
Specification | Turn – up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
K-800P-13 | 1.3 mm | 120 ml | 260 mm | 190 l/min | SG008-800S-13 | 1.3 mm |
K-800P-14 | 1.4 mm | 165 ml | 265 mm | 190 l/min | SG008-800S-14 | 1.4 mm |
K-800P-15 | 1.5 mm | 180 ml | 265 mm | 200 l/min | SG008-800S-15 | 1.5 mm |
K-800P-17 | 1.7 mm | 210 ml | 270 mm | 200 l/min | SG008-800S-17 | 1.7 mm |
K-800P-20 | 2.0 mm | 250 ml | 275 mm | 200 l/min | SG008-800S-20 | 2.0 mm |
K-800P-25 | 2.5 mm | 300 ml | 275 mm | 200 l/min | SG008-800S-25 | 2.5 mm |
| • Type : Pressure Feed • Cup Capacity : Non • Fluid Inlet : 3/8″ • Air Inlet : 1/4″ | • Working Pressure : 30~43 psi • Standard Nozzle : 1.7 mm • Gun Weight : 626 gs |  | ||||
