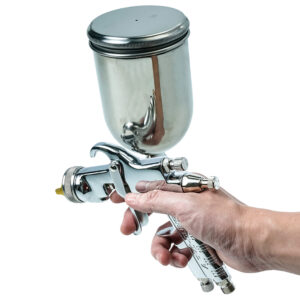

KH-600G is a gravity feed spray gun. Equipped with a 400c.c. Gravity Stainless Cup, Cleaning Brush, and Spanner.
This matchless performance H.V.L.P. spray gun can save significant expensive paint material (about 30% to compare with conventional spray gun). The H.V.L.P. spray gun have been developed to ensure efficiency of coherence above 65% and less than 10psi air pressure exhaust from air cap to meet the required by environmental protection legislation. H.V.L.P. Spray Gun is extremely environmental friendly.
- Gun Body- is made of aluminum Die-Casting and carefully polished for finest surface. Friendly holding design.
- Fluid Nozzle and Paint Needle- are precisely made of stainless steel with hardened nozzle. That provides finest atomization and perfect finish, 100% strictly hand-checked nozzle set ensures the highest quality for complete spray gun as well as whole range of spare nozzle set. It can be used with water-borne pain materials.
- Air Cap- the special aluminum cap design provides excellent atomization as well.
- Teflon Material Seals & Packing- are resistant from acid, alkali and solvent for ensuring long lifetime. Less maintenance needed.
- With Built- in Air Regulator, Material Flow Regulator, and Round/Oval Pattern Control Device.
Specification | Turn – up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
KH-600G-08 | 0.8 mm | 90 ml | 270 mm | 270 l/min | SG018-600-08 | 0.8 mm |
KH-600G-11 | 1.1 mm | 110 ml | 290 mm | 270 l/min | SG018-600-11 | 1.1 mm |
KH-600G-13 | 1.3 mm | 130 ml | 295 mm | 270 l/min | SG018-600-13 | 1.3 mm |
KH-600G-14 | 1.4 mm | 140 ml | 300 mm | 280 l/min | SG018-600-14 | 1.4 mm |
KH-600G-18 | 1.8 mm | 170 ml | 310 mm | 280 l/min | SG018-600-18 | 1.8 mm |
KH-600G-20 | 2.0 mm | 200 ml | 320 mm | 280 l/min | SG018-600-20 | 2.0 mm |
• Type : Gravity Side Cup • Cup Capacity : 400 c.c. • Fluid Inlet : 1/4″ • Air Inlet : 1/4″ | • Working Pressure : 20~28 psi • Standard Nozzle : 1.4 mm • Gun Weight : 315 gs |  | ||||
