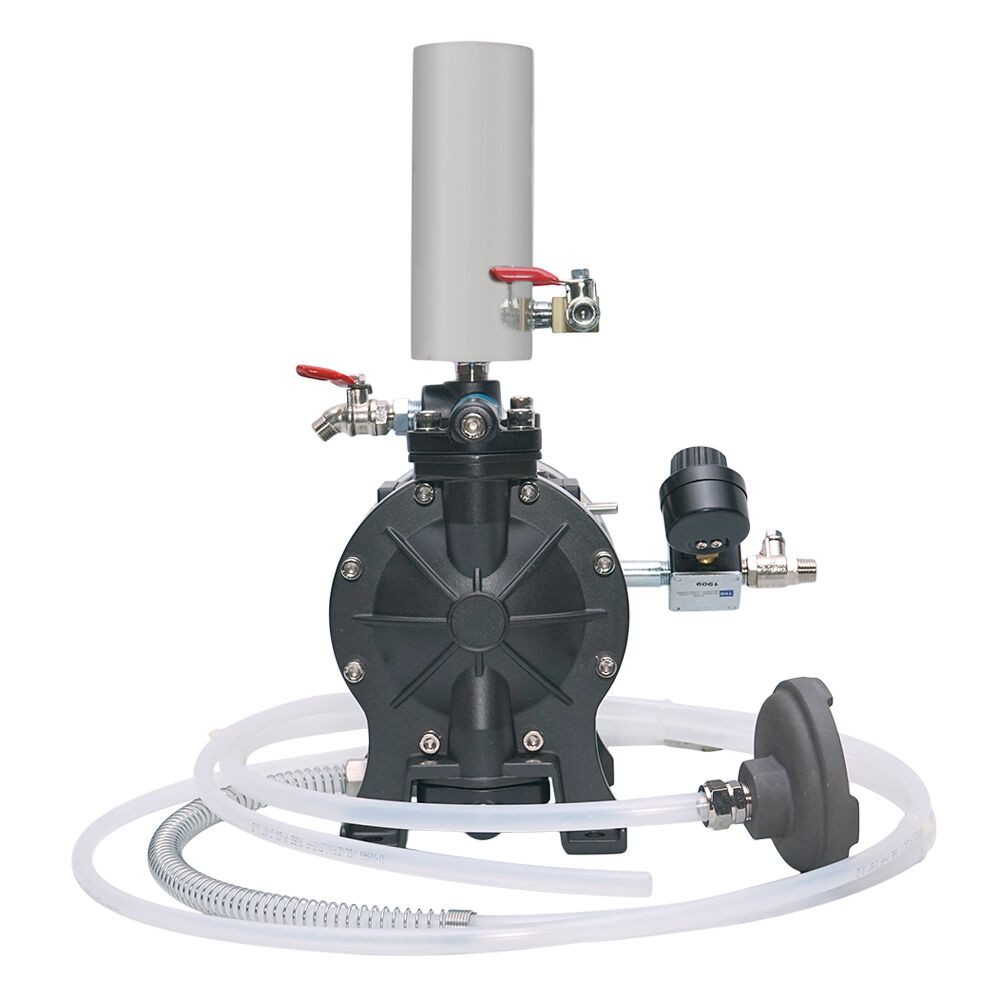

This high quality Twin Diaphragm Pumps can easily pump anything from water, paint, lube oil, detergents, or even antifreeze at a maximum flow rate of 25L/min. The high quality twin diaphragms are made from Teflon to extend life and improve pump efficiency. Constructed from lightweight but sturdy ADC-12 material, this twin diaphragm pump will provide you with years of worry free use when properly maintained and used as directed.
These are popular with spray painters who want to run one or two spray gun off the one pump. Great for industrial paint jobs. They can also be used to pump paint around a factory to different painting locations.
☑ Especificação
Taxa de fluxo máxima | 6.61 Gallon/Per Min. ; 25 Liter/Per Min. |
|---|---|
Média Ar Cons. | 180 Liter / Per Min. ; 6.35 Scfm / Per Min. |
Pressão mais baixa | 0,5 Bar (kgf/cm²); 7,25 psi |
Pressão Máxima | 8,3 Bar (kgf/cm²); 120 psi |
Working Pressure Advised | 1,5 ~ 5 Bar (kgf/cm²); 21,75 psi ~ 72,5 psi |
Quantidade / Ciclo | 80 ml |
Peso líquido | 6 kg |
Tamanho da montagem | 41(L)cm x 28(W)cm x 49(H)cm |
Entrada de ar | 1/4" PT (BSP) |
Saída de ar | 1/4" PT (BSP) |
Entrada / Saída de Líquido | 3/8″ PT (BSP) |
Elevação de entrada (profunda) | 6 m-molhado; 3,7 m- seco |
Limite Sólido | Ø1.5 mm |
