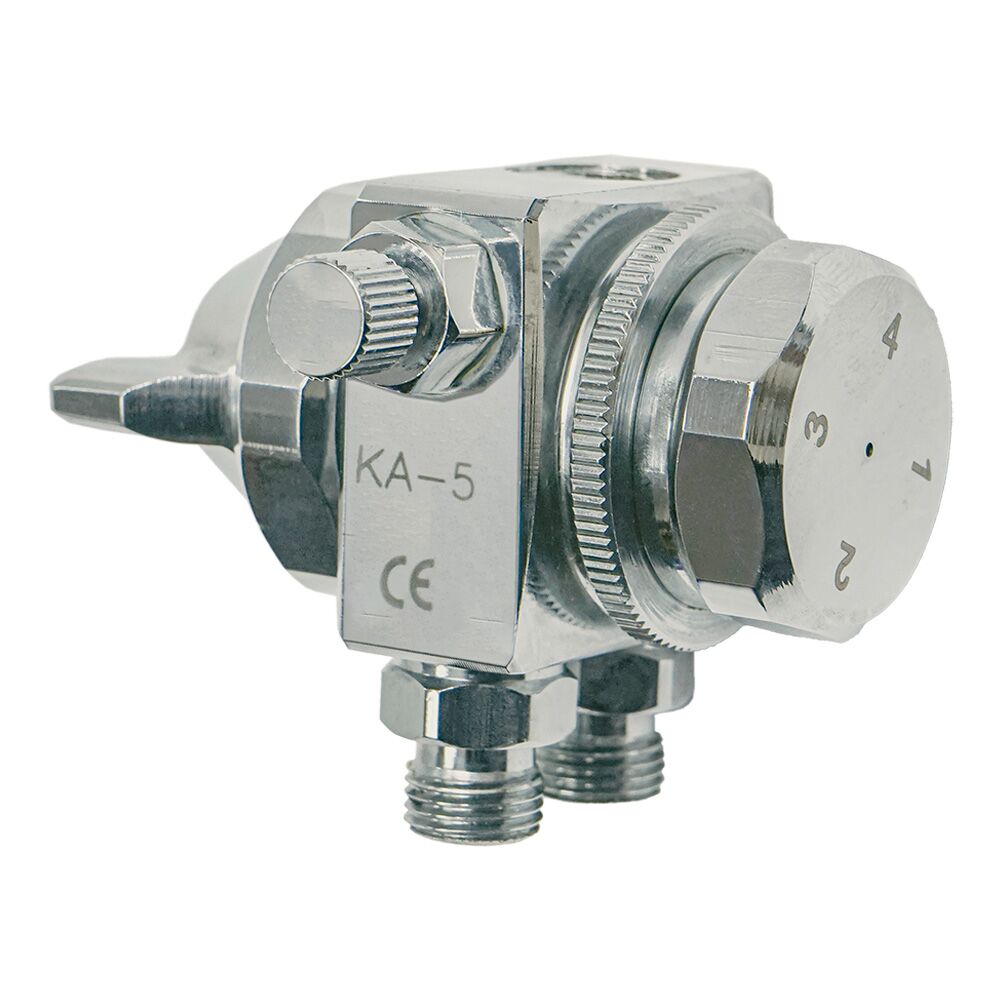

KA-5 is an automatic spray gun. It’s suitable for most liquid spraying and surface coating. The compact automatic spray gun is ideal for reciprocating or rotary machines, fixed spray positions or programmable robots. Stainless steel fluid nozzle and needle withstand water-based or corrosive materials.
Inscrição :
Mounted on robot machine for automatic coating: Put moisture on the surface of objects, Spray liquid on mold of die-casting machines, Waterproof process for clothes and paper, Metal, Wood, Plastic, and others…
Especificação | Kit Vire-up | |||||
|---|---|---|---|---|---|---|
Modelo nº | Tamanho do bocal | Saída de fluido | Largura do Padrão | Consumo de ar | Modelo nº | Tamanho do bocal |
| KA-5-10 | 1,0 milímetros | 0-250 ml | 300 milímetros | 80 l/min | SG008-5-10 | 1,0 milímetros |
| KA-5-13 | 1,3 milímetros | 0-360 ml | 400 mm | 100 l/min | SG008-5-13 | 1,3 milímetros |
| KA-5-20 | 2,0 milímetros | 0-600 ml | 400 mm | 140 l/min | SG008-5-20 | 2,0 milímetros |
• Tipo: Alimentação de Pressão • Capacidade do copo: Não • Fluid Inlet : 1/8″ • Air Inlet : 1/8″ | • Pressão de Trabalho: 30~43 psi • Standard Nozzle : 1.3 mm • Gun Weight : 250 gs |  | ||||
