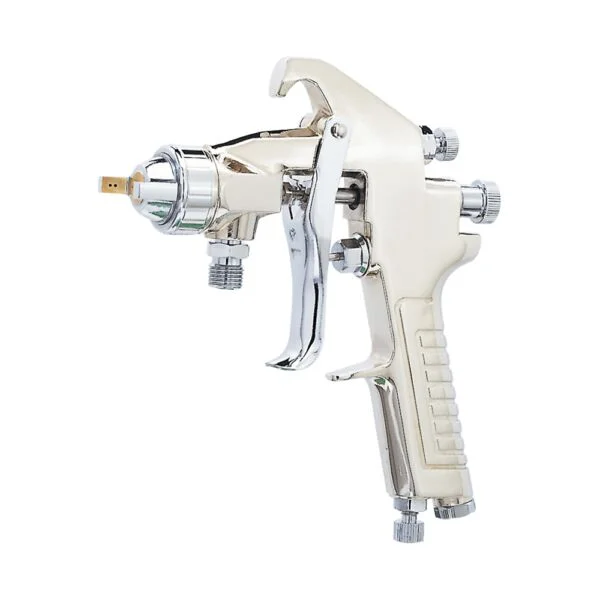

Conventional pressure feed spray gun, suitable for connecting with diaphragm pump or paint pressure tank for mass painting work. Equipped with a spanner and a cleaning brush.
Specification | Turn – up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
K-888P-10 | 1.0 mm | 220 ml | 280 mm | 200 l/min | SG008-888-10 | 1.0 mm |
K-888P-13 | 1.3 mm | 165 ml | 270 mm | 200 l/min | SG008-888-13 | 1.3 mm |
K-888P-15 | 1.5 mm | 180 ml | 280 mm | 200 l/min | SG008-888-15 | 1.5 mm |
K-888P-18 | 1.8 mm | 220 ml | 280 mm | 200 l/min | SG008-888-18 | 1.8 mm |
K-888P-20 | 2.0 mm | 250 ml | 290 mm | 210 l/min | SG008-888-20 | 2.0 mm |
K-888P-25 | 2.5 mm | 290 ml | 300 mm | 210 l/min | SG008-888-25 | 2.5 mm |
• Type : Pressure Feed • Cup Capacity : Non • Fluid Inlet : 1/4″ • Air Inlet : 1/4″ | • Working Pressure : 30~43 psi • Standard Nozzle : 1.5 mm • Gun Weight : 460 gs |  | ||||
